FIL MILLING MACHINE FCTG450
| TRAVELS: | |||
| Longitudinal | x | mm | 4.500 |
| Vertical | y | mm | 2.000 |
| Cross RAM | z | mm | 1.200 |
| Cross travel | w | mm | 1.500 |
| CNC: | |||
| ECS 2700 D |

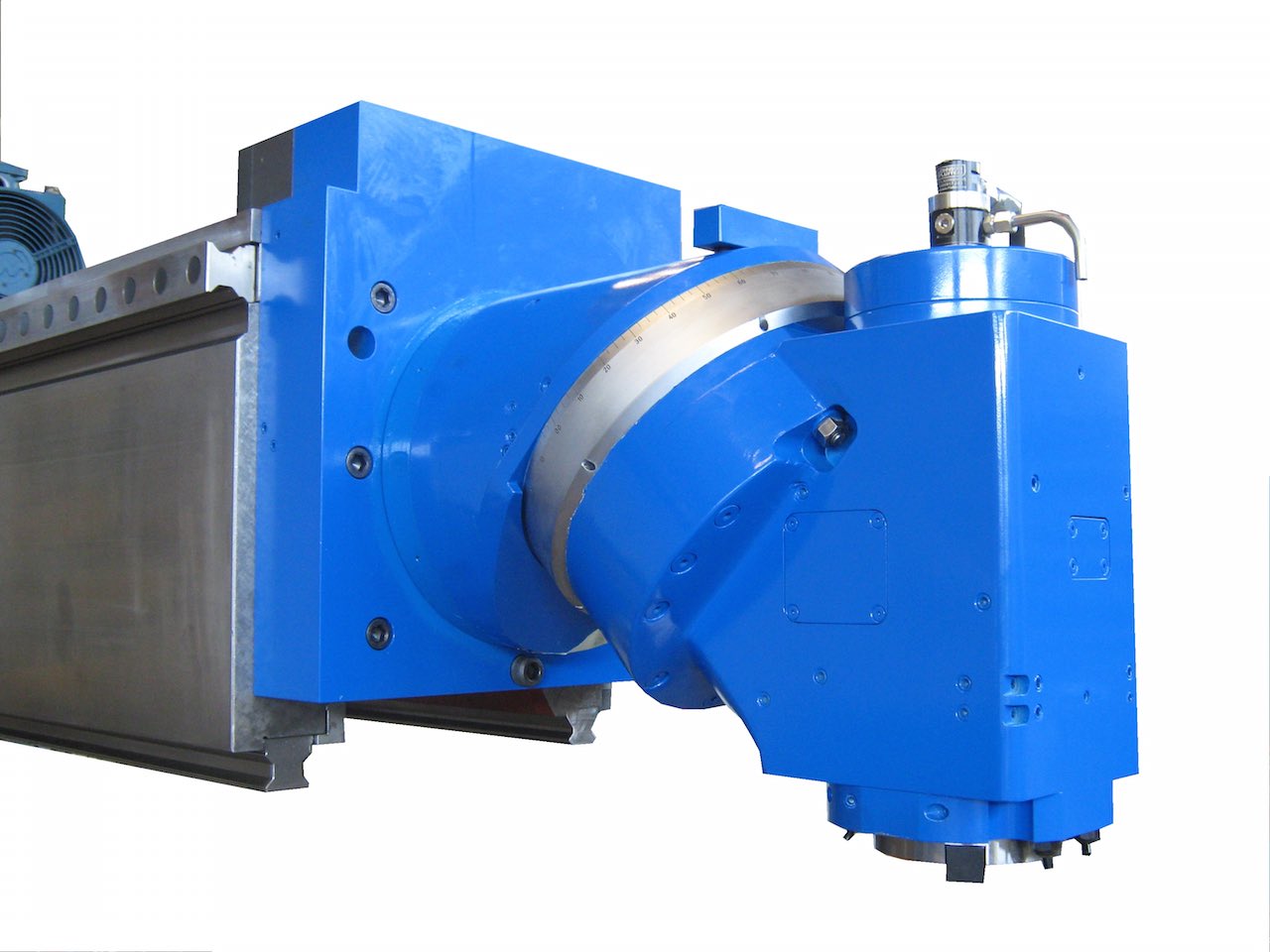

AUTOMATIC UNIVERSAL HEAD 2,5°
| Taper | ISO 50 DIN69871 |
| Gear box 2 speed range | |
| Rotation speed | 4.000 RPM |
| Engine power | 35 KW |
|
|
ROTARY TABLE
| Plate dimensions | 1.600x2.000 mm |
| Max admitted load | 12.000 Kg |
| T slots | 9 |
AUTOMATIC TOOL CHANGER ISO 50
| Tool place | 60 |
| Taper | ISO 50 DIN69871 |
